技术参数
Item | DirectLaser M3 | DirectLaser M7 | |
Parameter | Equipment Structure | Laser head moving, closed dust structure design | |
Level of safety | Laser Class I | ||
Input power supply | 380VAC/50Hz | ||
Consumed power | Approx. 3KW | Approx. 3.5KW | |
Eequipment weight | < 2,000KG | < 2,700KG | |

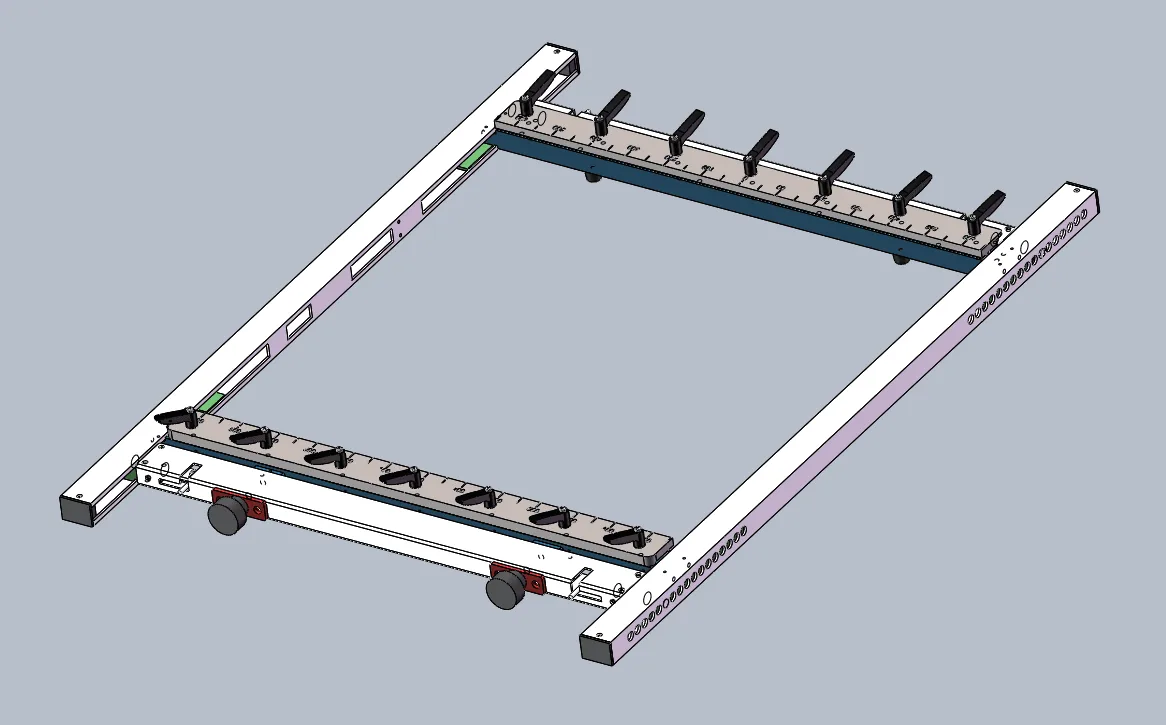

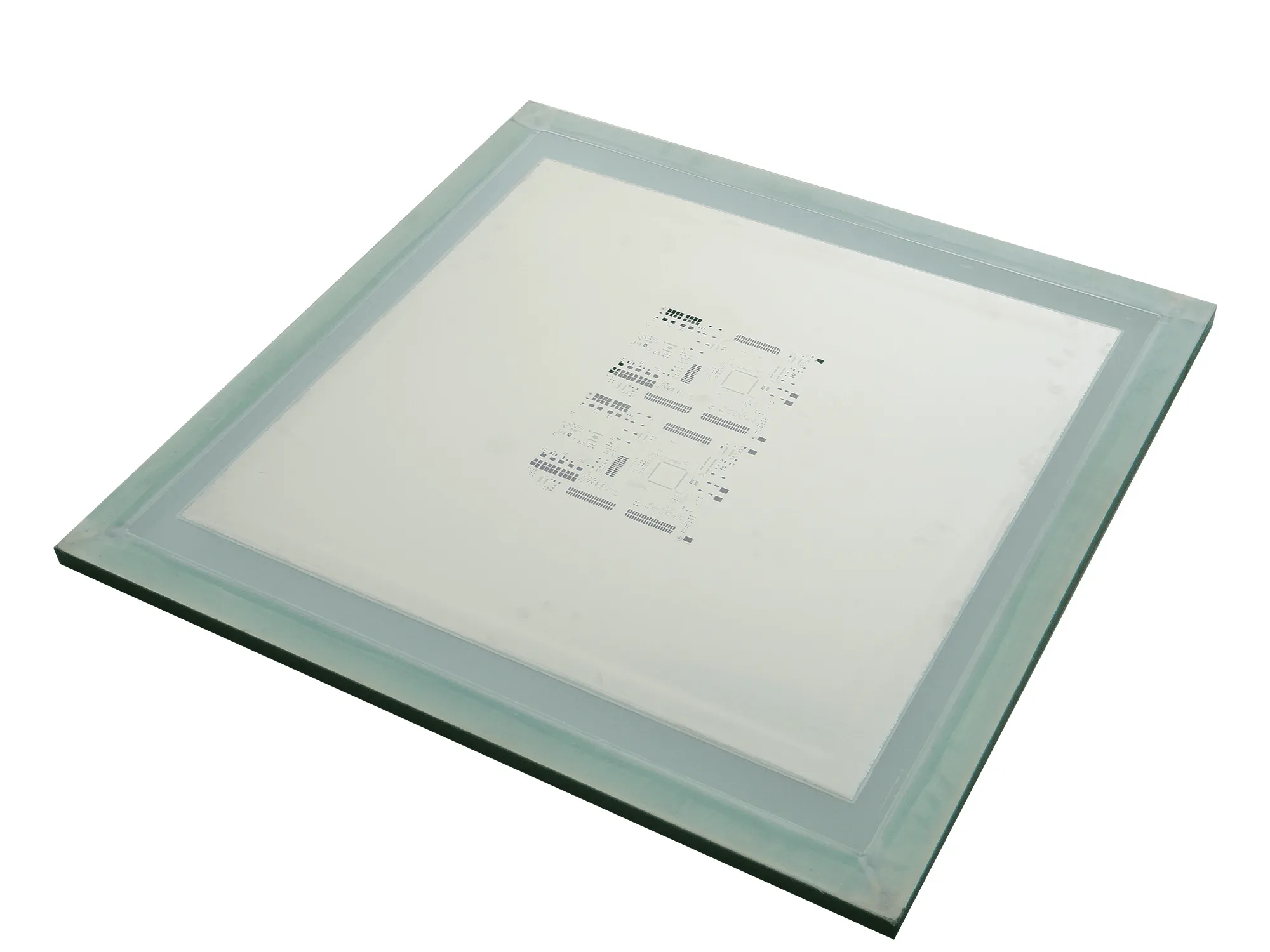

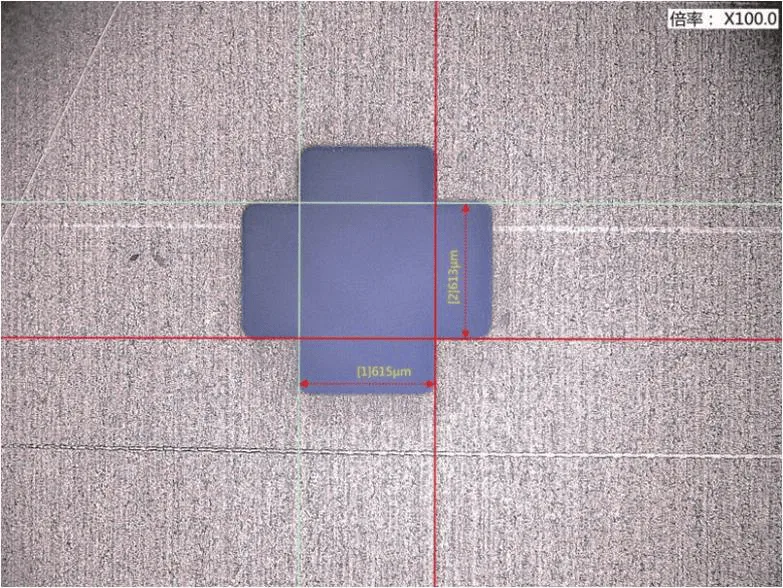

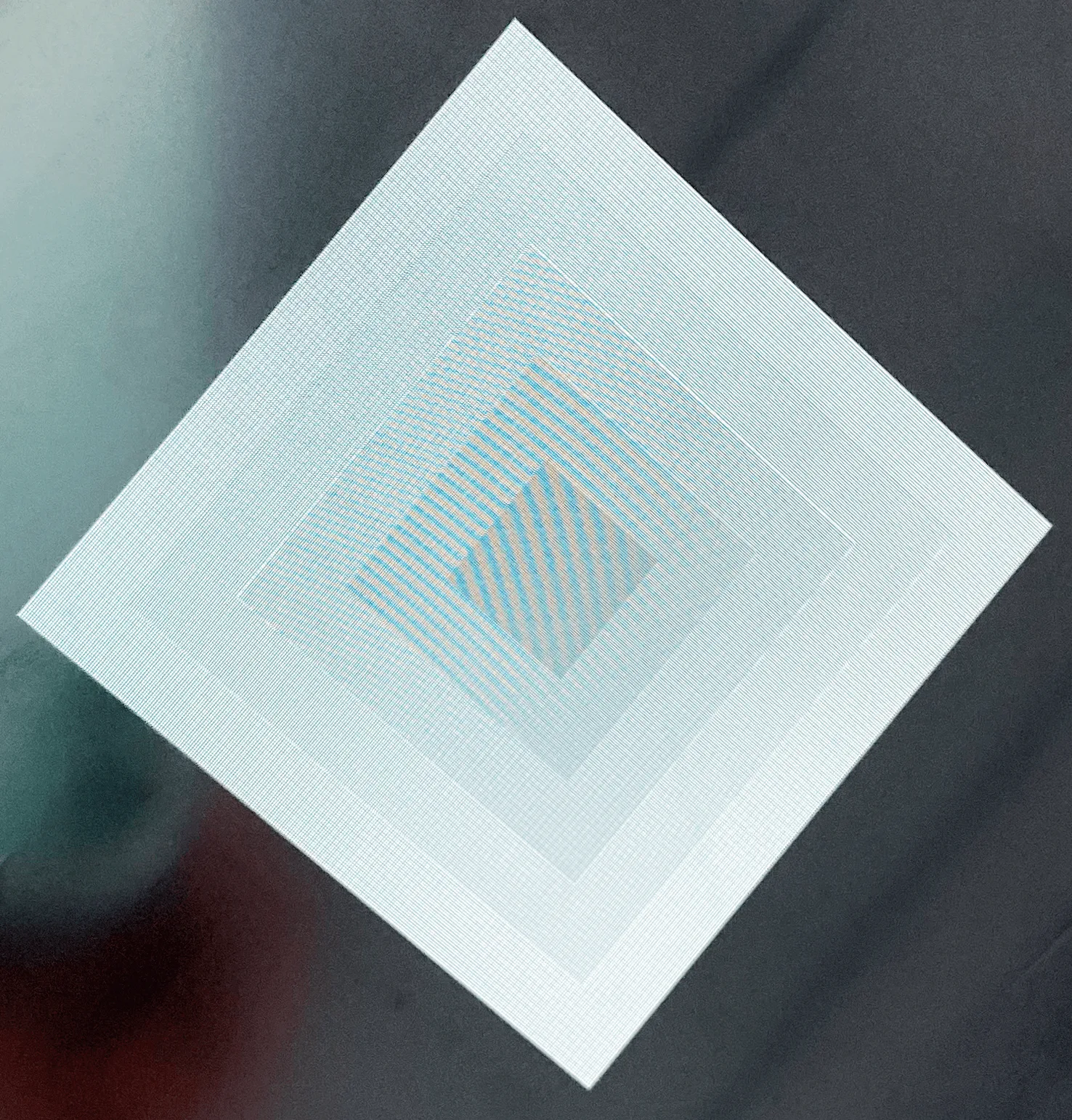

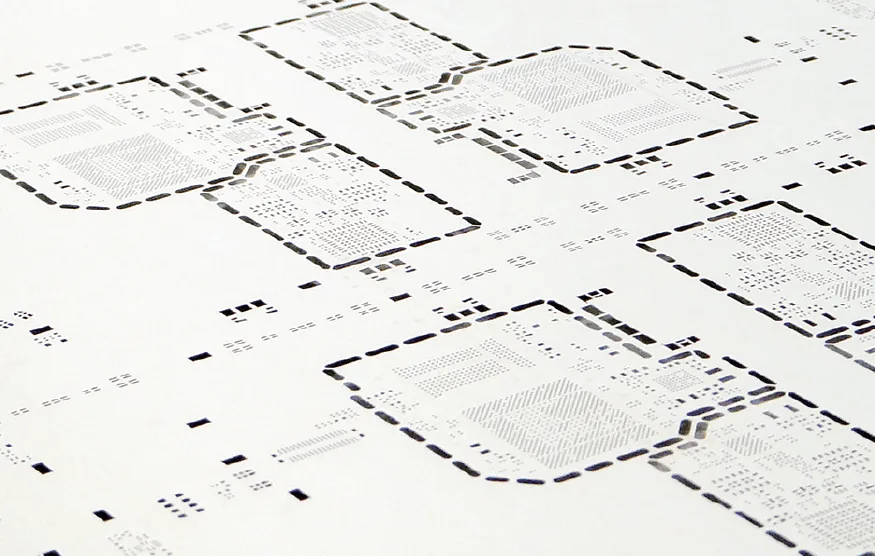

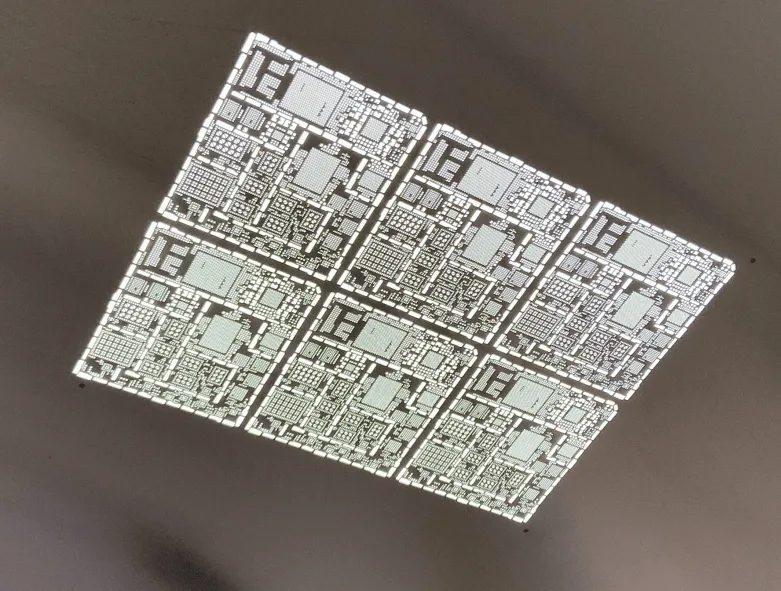

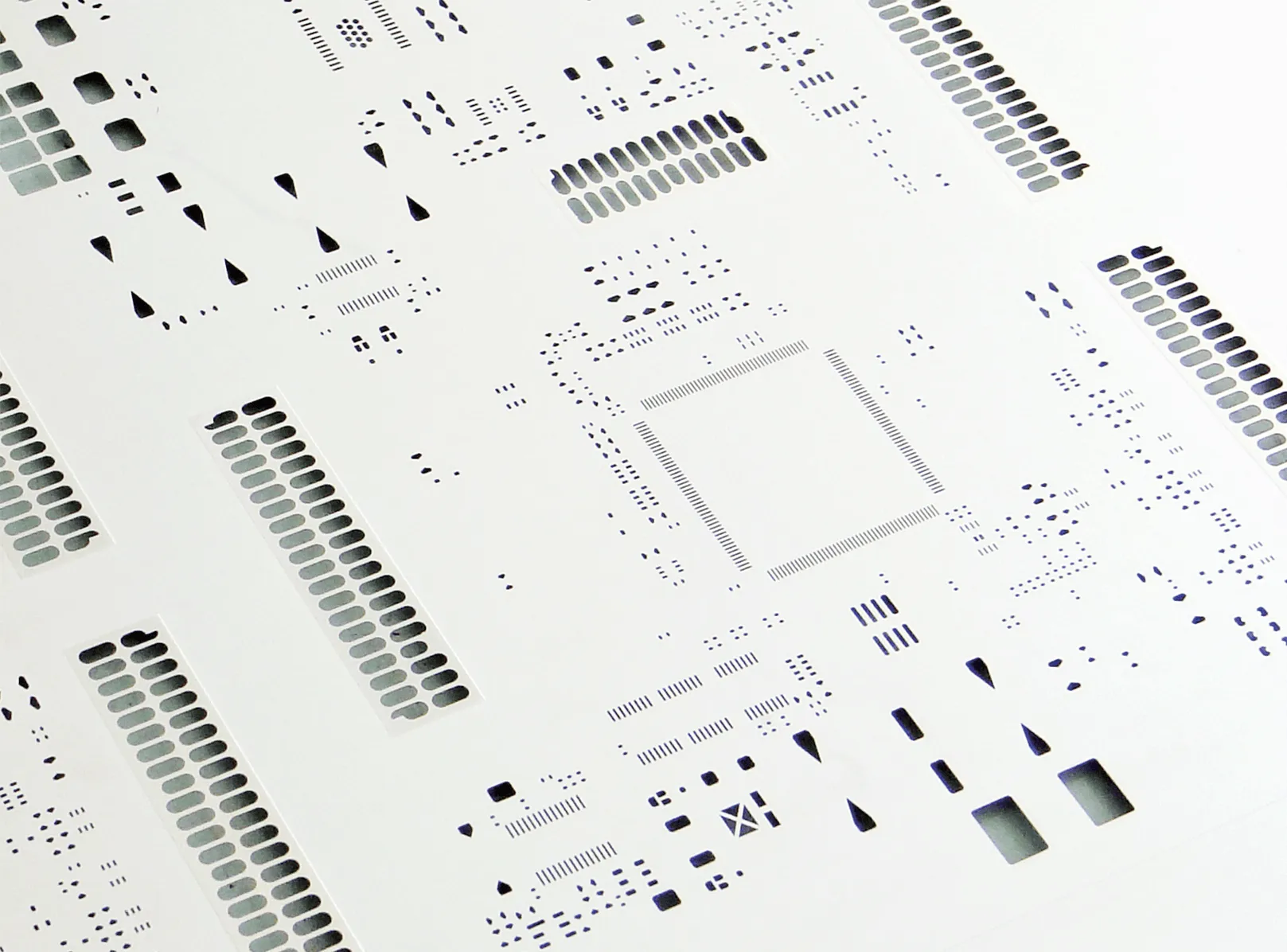

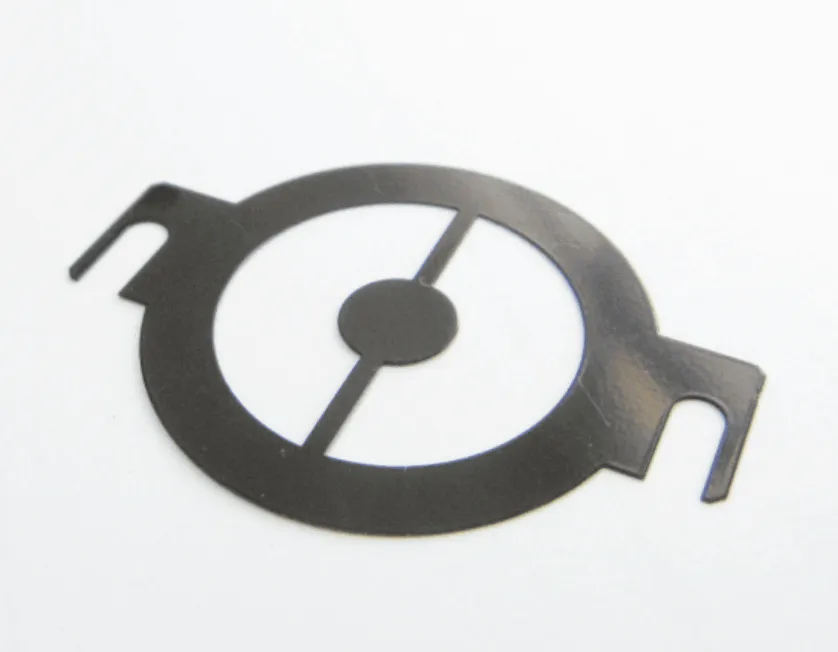

Steel sheet fixture | Automatic mesh frame mounting and clamping | ||
Level the net frame | Automatic net frame leveling | ||
Motion control system | ACS Controller | ||
X/Y axis resolution | 0.1μm | ||
Camera system | Standard configuration | ||
Control computer | Standard configuration | ||
Equipment Structure | 1713 x 1480 x 1585mm | L2020 x W5438 xH2083mm | |
Laser head | Laser head | 200W IPG Fiber laser head | |
Cooling method | Cooling | ||
Focal length adjustment | Full automatic adjustment | ||
software | Operating software | Self-developed DreamCreaTor3 | |
Data handling | Self-developed CircuitCAM 7.5 Stencil PLUS | Self-developed CircuitCAM 7.5 Stencil PLUS | |
Moving system | Working platform | Natural granite + steel frame | |
Driving method | Gantry dual drive | ||
Driving motor | Linear Motor | ||
Transfer accurancy | Cutting range ±2μm | ||
Cutting performance | Minimum opening | 30μm It depends on the thickness of the material | |
Cutting speed | Up to 15,600 holes/hr | ||
Cutting area | 600mm X 800mm | ||
Auxiliary gas | 8-10bar oxygen or 16bar compressed air | ||
Thickest sheet of steel | 1mm | ||
Options | Smoke purifier | YES | YES |
Laser marking module | Option | YES | |
Grinding module | Option | YES | |
Stencil inspection module | Option | YES | |
